Detail Section of Long Span Single-Storey Building 2

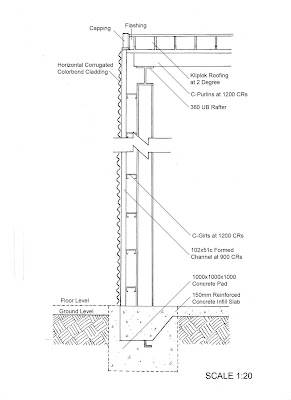

Week 3 Tutorial Exercise: Detail drawing of a long-span single-storey building 2

Detail Section of Long Span Single-Storey Building

Week 2 Tutorial Exercise: Detail drawing of a long-span single-storey building

Single-level long-span commercial building

In the first week's task, I've chosen Bunnings Warehouse to be the example of a single level long span building. The first photo gives an overview of the whole building. This Bunning Warehouse is located opposite Deakin Waurn Pond University.

This steel column from the side of the building is one of the main structural element that support and hold up the building. The pipe along the column is for rain water catchment.

This is a close detail of one of the supporting columns inside the building. The I-Beams are bolted and screwed together and the small gap of space on top of the beam is to allow building services to be installed.
